Compliance
ICAO Annex 14 Volume 1, Seventh edition, 2016, table 6.3 Medium Intensity Type A Obstruction Light
FAA L-865
CAAC MH6012-2015 Aviation obstruction light, MH 5001—2013 Aerodrome technical standards
Features
Electrical
CREE ultra high intensity LED as light source saving power consumption and maintenance than incandescent light or halogen lamp
Power supply available in DC(12V, 24V, 48V) or AC(110-240VAC) Physical
Unique design and UV protected polycarbonate reflector for converging light
UV protection Powder coated bright yellow color base make better visibility
Base material is die casting aluminum which has strong corrosion resistance, Shock and Vibrations protection
System design
Built-in photocell for day/night operation(dusk to dawn operation)
Surge and lightning protection
GPS devide inside for flashing synchronously
Optional
Dry contact Alarm output for remote monitoring
Infrared LED for pilot using NVG
IOT Monitoring
Application

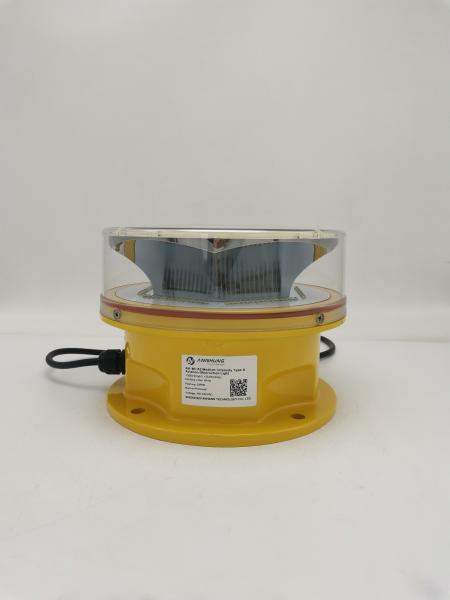

AH-MI-A2 medium-intensity light is used on the top of the High-rise Building, High Chimney, marking towers (Telecom, GSM, Microwave & TV), High Pole, Tower Crane, Wind Turbine, etc when the obstacle height is 105-150meter, and most time work with low /medium intensity lights installed on the lower place.
| Description | Parameter |
Light Source | CREE high intensity LED |
Horizontal Output(degrees) | 360 |
LED Life Experience(hours) | >100,000 |
Operating Voltage | DC(12V, 48VDC) or AC(110-240VAC) or others |
Instantaneous power(W) | 600 |
Average Power(W) | ≤13W(20fpm) |
Circuit Protection | Integrated |
Body Material | UV protected Polycarbonate |
Base Material | Powder-coated Die-casting aluminum |
Weight(kg) | 3.5 |
Humidity | 10%-95%RH(No condensation) |
Wind Speed | 240Km/h |
Waterproof | IP66 |
FAA | L-865 |
