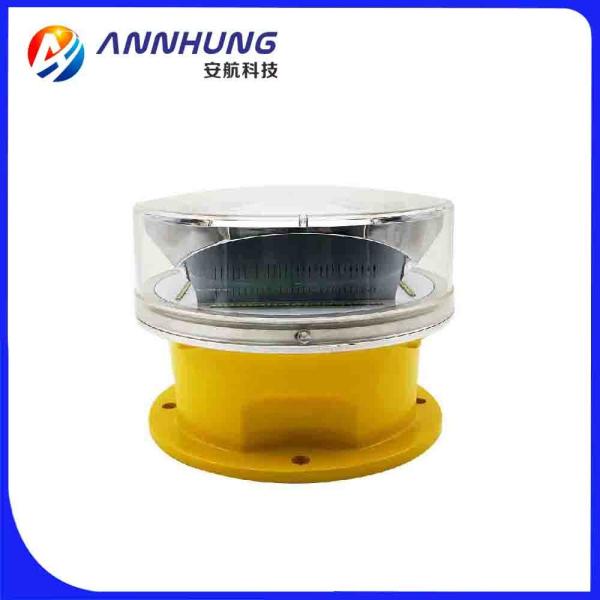

Polycarbonate 60fpm LED Aviation Obstruction Light Medium Intensity Aluminum

  • 1
  • 2

Brand Name : Annhung

Model Number : AH-MI-A2

Certification : ICAO

Place of Origin : China

MOQ : 1

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 1000pieces for one month

Delivery Time : 7-15days depends on quantity

Packaging Details : Carton

Product Name : Medium-intensity Type A L865 Aviation Obstruction Light

Light Source : CREE high intensity LED

Available Colors : White(Other color is optional)

Horizontal Output(degrees) : 360

Flash Characteristics : 20-60 flashes per minute(factory setting: 20fpm)

LED Life Experience(hours) : >100,000

Body Material : UV protected Polycarbonate

Base Material : Powder-coated Die-casting aluminum

Ambient Temperature(℃) : -40~55

Storage temperature(℃) : -55~70

Humidity : 10%-95%RH(No condensation)

Wind Speed : 240Km/h

Contact Now

Factory Supply Good Quality Medium-intensity Type A LED Aviation Obstruction Light

Application

  • AH-MI-A2 medium-intensity light is used on the top of the High-rise Building, High Chimney, marking towers (Telecom, GSM, Microwave & TV), High Pole, Tower Crane, Wind Turbine, etc when the obstacle height is between 105-150 meters, and most time work with low intensity lights & medium intensity type B light installed on the lower place.

Compliance

  • ICAO Annex 14 Volume 1, Seventh edition, 2016, table 6.3 Medium Intensity Type A Obstruction Light

  • FAA L-865

    Features

    Electrical

  • CREE ultra high intensity LED as light source saving power consumption and maintenance than incandescent light or halogen lamp

  • Power supply available in DC(12V, 24V, 48V) or AC(110-240VAC)

  • Physical

  • Unique design and UV protected polycarbonate reflector for converging light

  • UV protection Powder coated bright yellow color base make better visibility

  • Base material is die casting aluminum which has strong corrosion resistance, Shock and Vibrations protection

  • Polycarbonate 60fpm LED Aviation Obstruction Light Medium Intensity AluminumSpecial valve installed beside the base to make sure the air could go through but water is avoid, so that the whole light temperature won’t be high

    System design

  • Built-in photocell for day/night operation(dusk to dawn operation)

  • Surge and lightning protection

    Optional

  • Dry contact Alarm output for remote monitoring

  • GPS synchronization

  • Infrared LED for pilot using NVG

SPECIFICATIONS AH-MI-A2 LED Medium-intensity Type A L865 Aviation Obstruction Light
Light Characteristics
Light Source CREE high intensity LED
Available Colors White
Intensity(cd) ≥20000cd (Daytime)
≥2000cd(Night)
Horizontal Output(degrees) 360
Vertical Divergence(degrees) 3
Flash Characteristics 20-60 flashes per minute(factory setting: 20fpm)
Operation Mode Dusk-to-dawn Automatically as standard.
24hours operation as option
LED Life Experience(hours) >100,000
Electrical Characteristics
Operating Voltage DC(12V, 24V, 36V, 48V) or AC(110-240VAC)
Power(W) ≤20W(20fpm)
Circuit Protection Integrated
Physical Characteristics
Body Material UV protected Polycarbonate
Base Material Powder-coated Die-casting aluminum
Mounting 190×190×θ12
Dimension(mm) 229×229×168
Weight(kg)

3
Product Life Expectancy 5 years Plus
Environmental Factors
Humidity
10%-95%RH(No condensation)
Wind Speed
240Km/h
Waterproof IP66
Compliance
ICAO Annex 14 Volume 1,'Aerodrome Design and
Operations’ Seventh edition 2016, table 6.3
Medium-intensity Type A White Obstacle Light
FAA L-865
Options Available
GPS sync flashing
Infrared LED compatible for NVG (Night
Vision Goggles)
Dry contact alarm output
RS485 communication
Bird deterrent spike

Product datasheet download: download AH-MI-A2 LED Medium-intensity Type A L865...

Company Information

Anhang Technology (HK) Company Limited is a high technology enterprise engaging in research, production, sales and after -sales services for a wide range of Aviation Obstruction Light,Aircraft Warning Light,Helipad Light, LED Marine Lanterns,LED Bulb and Aircraft Warning Sphere.We are a domestic market leader in the field of navigation lights and a supporter of green and safe emissions. Our products are widely used in Civil Airports, Helipads, Communication Towers, Factory,Power Plant Chimneys, Television Tower, Port, Bridges, and High-rise buildings, Buoyage in sea, etc.

All our products are designed and manufactured strictly according to ICAO (International Civil Aviation Organization), FAA (Federal Aviation Administration) and IALA(International Association of Lighthouse Authorities). We are proud to have served customers from all across the world.
